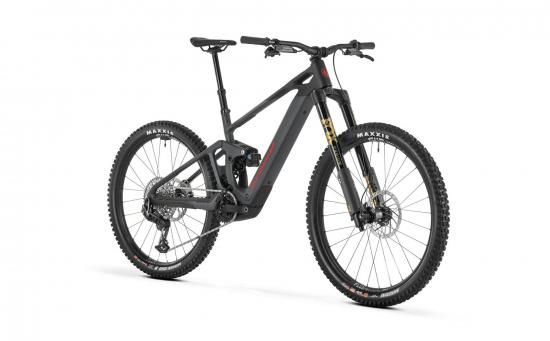

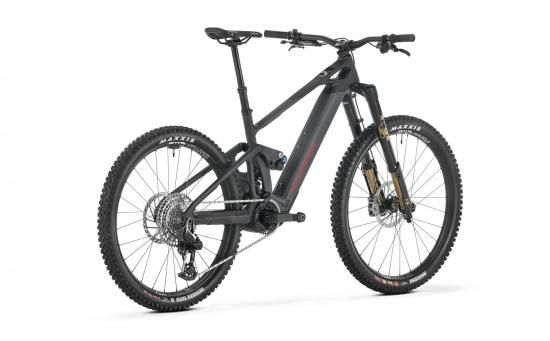

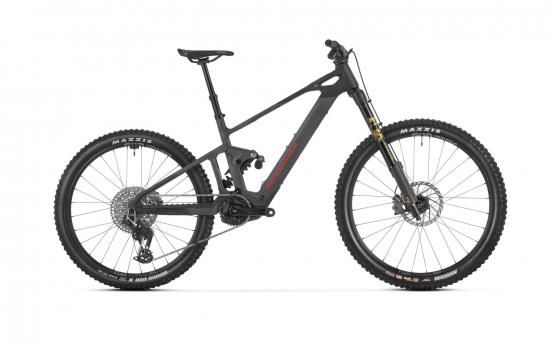

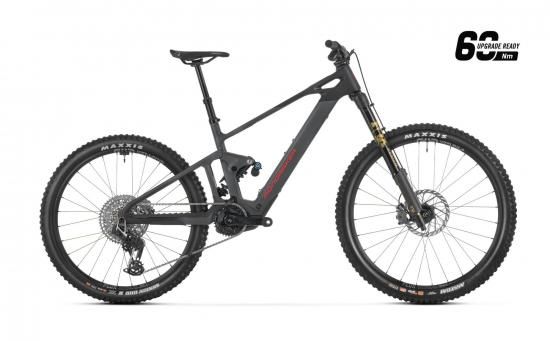

MONDRAKER LIGHT E-MTB DUNE RR
（デューン アールアール）
【 大変申し訳ございませんが、メーカーさんからのお取り寄せにてご対応をさせていただいております。 何か気になること、事前にご確認されたいことがございましたら、≪ この商品について問い合わせる ≫から、お問い合わせを頂戴できれば幸いです。 】
Sサイズ 165〜170ｃｍ
Mサイズ 170〜180ｃｍ
Ｌサイズ 175〜185ｃｍ
ＸＬサイズ 185〜195ｃｍ
〜〜〜 BIKE SPEC 〜〜〜
Frame
Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & non removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock
Fox DHX2 Factory Kashima, 205x65mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings
Shock settings
CS40 compression, RS30 rebound, LML, Rezi B40, Bleed 0,9, VVCM Spring rate:S size 350 lbs, M size 400 lbs, L size 450 lbs, XL size 500 lbs
Fork
Fox Podium 29 GRIPX2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset
Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar
Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
Saddle
Ergon Enduro SPS20
Front brake
Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake
Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever
Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust
Rims
e*thirteen Grappler Flux, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Spokes
e*thirteen Sapim D-light / Brass
Front hub
e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub
e*thirteen Superboost 12x148mm, Sidekick,12°/15°/18° Adjustable Deadband, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
Front tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead
Rear tire
Maxxis Minion DHR II 27’5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset
E.13 Helix Race Alloy E*Spec Plus, All sizes: 160mm
Rings
Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain
Sram GX Eagle T-Type, 12s, Powerlock
Rear derrailleur
Sram X0 Eagle AXS T-Type,12s
Shift levers
Sram Eagle AXS Pod MMX, 12s
Casette
Sram XS-1275, 10-52T, T-Type, 12s
Weight
20,5 kg
Display
Kiox 400C / Bosch Mini Remote
Motor
Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
Battery
Bosch Compact Powertube 400Wh
